VicFlex™
Style-AB5-AH2-Metal-2.tifStyle-AB5-AH2-Wood-2.tif
Facebook Twitter Pinterest Email

Style AB5

SKU: N/A Category:

For hard-lid ceilings – Over/Under Center Bracket allows for installation and vertical adjustment from above or below the ceiling surface

Clear selection
Packaging

Box of 10

Bracket Features
  • End Brackets: Optimized for metal (no screws needed) or wood stud (one screw per side)
  • Over/Under Center Bracket: Allows for installation and vertical adjustment from above or below the ceiling surface
Approved Hose Combinations
Hose Approvals Publication
AH1 FM_Logo VdS-Logo LPCB_Logo C-UL-US-Logo-2 CCC_logo CNBOP-PIB-Logo 10.95
AH1-CC FM_Logo VdS-Logo LPCB_Logo C-UL-US-Logo-2 10.95
AH2 FM_Logo VdS-Logo LPCB_Logo C-UL-US-Logo-2 CCC_logo CNBOP-PIB-Logo 10.85
AH2-CC FM_Logo VdS-Logo C-UL-US-Logo-2 10.85
AH2-CC-300 FM_Logo 10.84
Videos

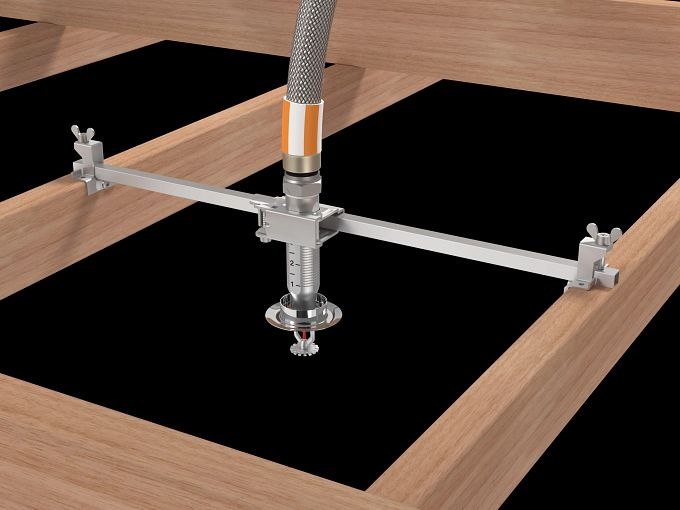

Style AB5 Bracket: Hard Lid (Wood) Ceiling - Concealed Pendent

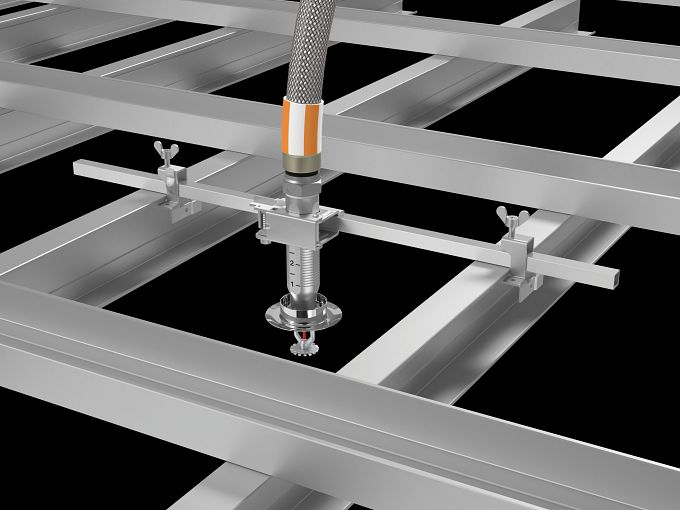

Style AB5 Bracket: Hard Lid (Metal) Ceiling - Concealed Pendent
Downloads10.85 Series AH2 and AH2-CC Braided Hose Submittal10.84 Series AH2-300 and AH2-CC-300 Braided Hose Submittal10.95 Series AH1 and AH1-CC Braided Hose SubmittalI-VicFlex.AB5
